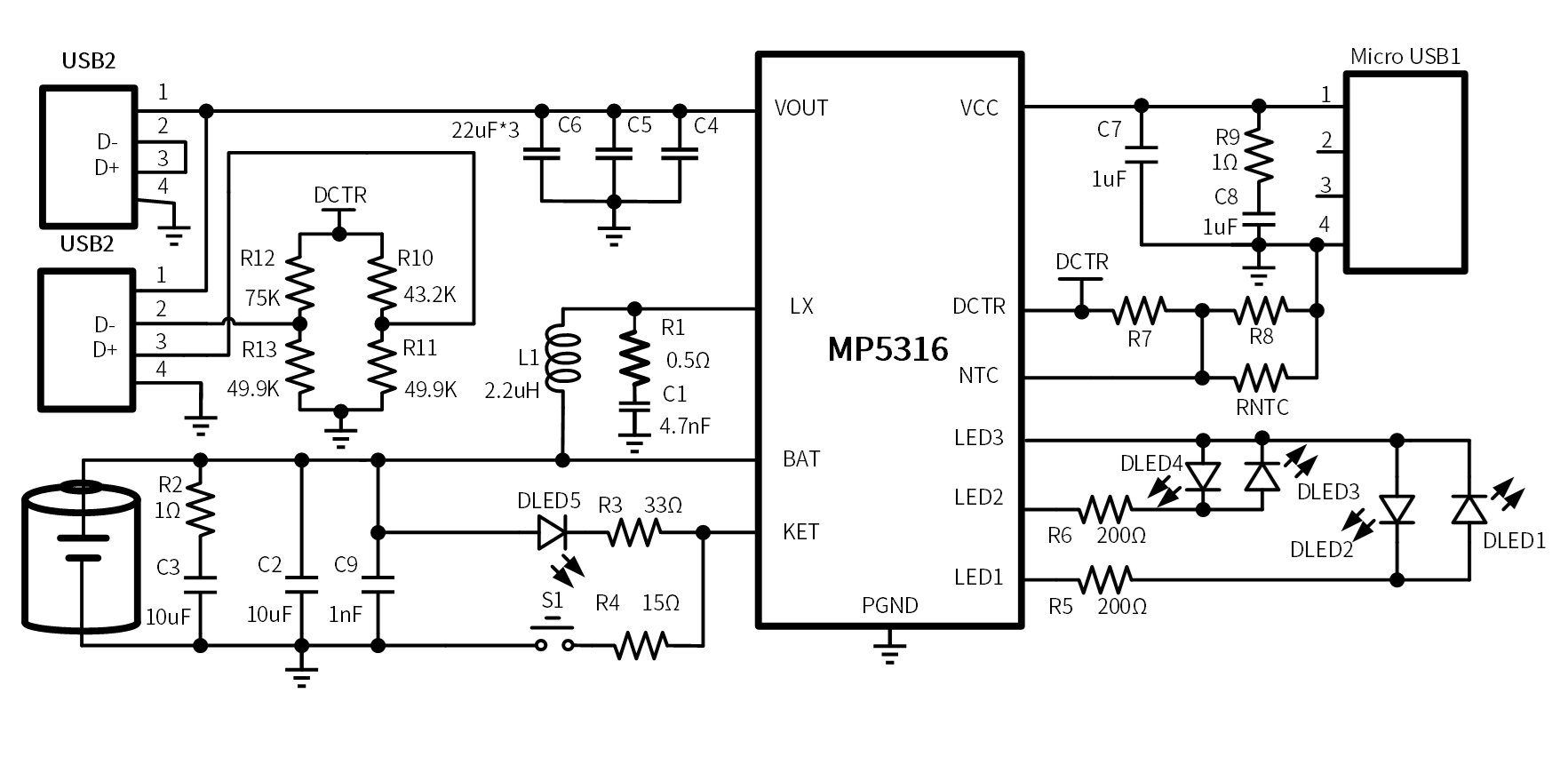

MP5316 is a power bank solution device which is highly integrated with switch charger, LED display cell and synchronous boost output.
The MP5316 has two operating modes, charge mode and boost mode, to manage the system and battery power based on the state of the input.
When input power is present, the MP5316 operates in charge mode. It automatically detects the battery voltage and charges the battery in the three phases: trickle current mode, constant current mode and constant voltage mode.
Boost will be enabled by pressing the KEY or insertion a load at standby mode when the battery voltage is higher than 3.2V.
Low quiescent current: 75uA
Switch charge with high efficiency up to 90%@2A
Charge current up to 2A Frequency for charger：1MHz temperature, this realize the maximum charge rate, without overheat risk
C/10 charge terminated and recharge automatically
Terminated charge voltage : 4.20V/4.35V, the accuracy is ±1%
Regulate the charge current refer to the adapter’s ability automatically
Boost output 5.1V with High efficiency up to 94%@2A
Frequency for boost：500kHz
Output current up to 2.4A
Detect the load automatically and auto shunt down at no load condition
Original temperature management technology for boost
Over-current protection (OCP), overvoltage protection (OVP), over temperature protection (OTP) and short circuit protection (SCP) are integrated for boost
4 LEDs display to indicate the battery fuel gauge
Single key for battery fuel gauge display; Double key for torch; long key to shut down
Sub-Battery Applications
Power-Bank Applications for Smart-Phone Tablet and Other Portable Devices
